PND: Particle Measurement
- Product | Gas analysis
- January 1, 2023

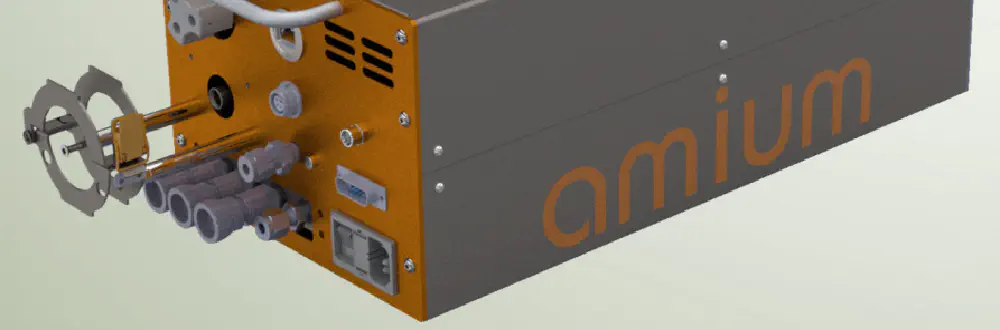

Particle number detector PND
Diffusion charger (DC)
Type
particle number detector PND diffusion charger (DC)
All In One
integrated sample pump integrated zero point adjustment
Wide Range
10 nm .. 1 µm
Plug and Play
quick setup, simple operation compact device
Flexible usage
mobile, manual or integrated usage standard interfaces: LAN (AK), CAN (dbc)
Features / description
- particle measurement
- particle number detector PND
- measuring principle: diffusion charger (DC)
Technical data
- compact design
- integrated sample pump
- integrated zero point adjustment
- integrated volatile particle remover (VPR)
- no operating resources necessary (in contrast to CPC principle)
- prepared connection for dilution unit (available separately)
- detected particle size 10 nm .. 1 µm
- sample flow 1 / 2.5 / 5 l/min
- interfaces LAN (AK) and CAN (dbc)
- power supply 24 VDC
