GD: Gas Divider

Exhaust Flow Meter EFM, venturi principle

C151: 550 kg/h, C152: 950 kg/h

Type

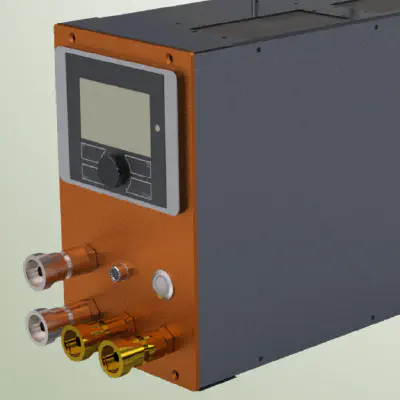

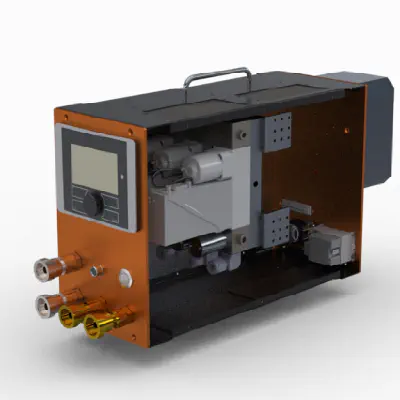

Reference gas calibrator Gas divider GD A8677 with Massflow-Controller

High Accuracy

deviation less than 0.5% at measuring point 200 steps

Plug and Play

quick setup, simple operation compact device

Calibration

calibrated according ISO 17025 / DAkkS

Flexible usage

mobile, manual or integrated usage standard interfaces: LAN (AK), CAN (dbc)

Features / description

• Reference gas calibrator
• gas divider with 3 Massflow-Controller: 1x zero gas (N2 or synthetic air), 2x span gas
• type: A8677
• integrated display for manual usage

Technical data

• compact design
• sample flow 0.5 .. 5 l/min
• accuracy <0.5 % rel. deviation at measuring point
• repeatability <0.35 % at measuring point
• delution range 1% .. 100%
• calibration ISO 17025 / DAkkS
• interfaces LAN (AK) and CAN (dbc)
• test gas and zero gas inlets with Quick Connect plugs, internal valve switching
• outlet with Quick Connect plug
• power supply 115 / 230 VAC, 50 / 60 Hz
